SANYO DENKI Develops 400 VAC Multi-Axis Servo Amplifier
December 11, 2017
SANYO DENKI CO., LTD. has developed a new AC servo amplifier expanding the SANMOTION R ADVANCED MODEL series.
A control unit, a power supply unit, and multiple amplifier units can be selected and combined into a servo amplifier best suited for your needs.
Control unit
Power supply unit
Amplifier unit
Features
1. Flexible and space-saving system configuration
Multiple amplifier units can be selected for combining with one power supply unit to build a multi-axis servo amplifier.
This flexibility allows you to configure the optimal servo amplifier for your needs while minimizing the footprint.
2. High-speed EtherCAT fieldbus communication
With a 100 Mbps high-speed and highly reliable communication, the EtherCAT fieldbus* achieves smooth device operation.
It enables the real-time sharing of encoder position information within the control unit, increasing the precision of motor synchronous operation.
It also boosts the output of motors in parallel operation as well.
3. Eco-efficient
Motor regenerative power can be used to drive other motors, contributing to improving device energy efficiency.
* Fieldbus is an all-digital, serial communications protocol used for communications among field devices and to the controller.
Specifications

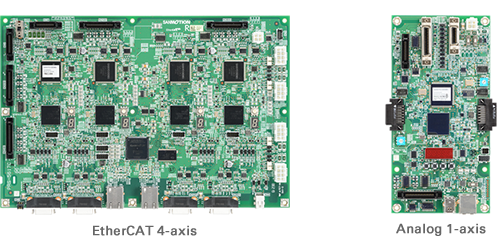

Control unit
| Model no. | RM2C4H4 | RM2C1A0 |
|---|---|---|
| No. of controlled axes | Up to 4 | 1 |
| Interface | EtherCAT interface | Analog interface |
| Safety function | Safe Torque Off function | None |
| Dimensions (mm) | 285 (W) × 190 (H) × 15 (D) | 80 (W) × 180 (H) × 17 (D) |

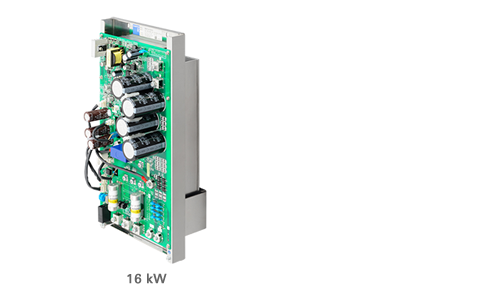

Power supply unit
| Model no. | RM2PCA160 |
|---|---|
| Input power supply voltage, current |
Main circuit power supply: 3-phase 380 to 480 VAC (-15%, +10%), 50/60 ±3 Hz |
| Control circuit power supply: 24 VDC ±15%, 3.4 A | |
| Rated output capacity | 16 kW |
| Input power capacity | 27 kVA |
| Compatible amplifier unit capacity |
25 to 150 A |
| Frame shape | Open frame |
| Dimensions (mm) | 184 (W) × 380 (H) × 168 (D) |

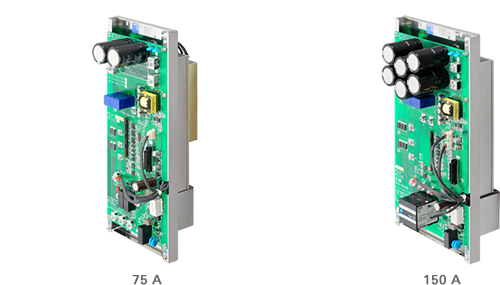

Amplifier unit
| Model no. | RM2DCA025 | RM2DCA050 | RM2DCA075 | RM2DCA150 |
|---|---|---|---|---|
| Input power supply voltage, current |
Main circuit power supply: 457 to 747 VDC | |||
| Control circuit power supply: 24 VDC ±15%, 1.3 A | ||||
| Amplifier capacity | 25 A | 50 A | 75 A | 150 A |
| Compatible motor output | 0.55 to 2 kW | 1 to 3.5 kW | 3.5 to 5.5 kW | 5.5 to 15 kW |
| Compatible encoder | Battery-less optical absolute encoder | |||
| Frame shape | Open frame | |||
| Dimensions (mm) | 154 (W) × 380 (H) × 166 (D) | 194 (W) × 380 (H) × 168 (D) | ||
PDF Catalog
Order Start Date
February 1, 2018
Price
Open
Note: The information stated in this release is current as of December 11, 2017.
“ SANMOTION ” is a trademark of SANYO DENKI CO., LTD.
