SANYO DENKI Unveils Industry-Leading San Ace 120AD ACDC Fan and Waterproof ACDC Fan, Delivering Unmatched Airflow and Static Pressure
June 1, 2023
SANYO DENKI launched the San Ace 120AD 120 × 120 × 38 mm ACDC Fan (2) and Splash Proof ACDC Fan, which feature the industry's highest airflow and static pressure.(1), providing unmatched performance for applications such as control panels, food manufacturing equipment, and plant factories. It is now cUL, TUV and CE approved. "ACDC" is SANYO DENKI's version of EC Fans.

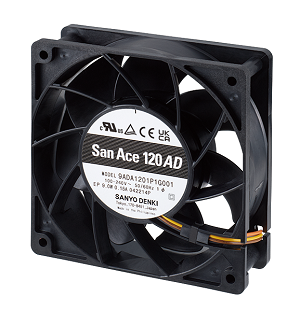

San Ace 120AD 9ADA type ACDC Fan

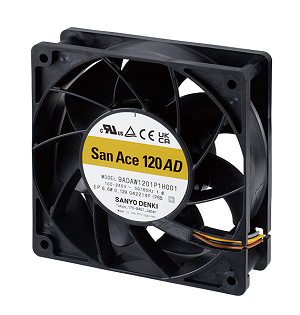

San Ace 120AD 9ADAW type Splash Proof ACDC Fan
Features
1. High Airflow and High Static Pressure
The San Ace 120AD 9ADA type ACDC Fan delivers a maximum airflow of 138 CFM and maximum static pressure of 0.683 InchesH2O,(3) which are approximately 1.3 times and 2 times higher than our current model,(4) respectively.
The San Ace 120AD 9ADAW type Splash Proof ACDC Fan delivers a maximum airflow of 119 CFM and maximum static pressure of 0.514 InchesH2O which are approximately 1.1 times and 1.5 times higher than the current model,(4) respectively.
2. Wide Operating Voltage Range
These fans have an input voltage range of 100 to 240 VAC, supporting both 100 and 200 VAC systems.
3. Water and Dust Protection
With its IP68-rated protection,(6) the San Ace 120AD 9ADAW type Splash Proof ACDC Fan is protected from water and dust. This ensures stable fan operation even in harsh environments.
(1) Based on our own research as of August 24, 2022, conducted among equally-sized ACDC fans and water-resistant ACDC fans on the market.
(2) ACDC fans: DC (direct current) fans that run on AC (alternating current) power. AC fans are simple and easy to use since they operate on standard AC power supplies but fall behind DC fans in performance. On the other hand, DC fans outperform AC fans but require a DC power supply. ACDC fans combine the advantages of both.
(3) For a model 9ADA1201P1G001
(4) Current model: 120 × 120 × 38 mm San Ace 120AD 9AD type ACDC Fan (model: 9AD1201H12).
(5) For a model 9ADAW1201P1H001
(6) The degree of protection (IP code) is defined by IEC 60529 (International Electrotechnical Commission) as follows.
The protection rating applies only to electrical components (motor coils and electronic components) in our fans.
The mechanical components other than the electrical components are not subject to protection.
IP68:
▪ Complete protection against dust
▪ Protection against submersion in water
Specifications
San Ace 120AD 9ADA type ACDC Fan - Dimensions: 120 × 120 × 38 mm, Mass: 340 g
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure | Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9ADA1201P1G001 (With pulse sensor and PWM control) 9ADA1201G1002 (Without sensor) |
100 to 240 | 90 to 264 | 9.0 | 4400 | 3.9 | 138 | 170 | 0.683 | 52 |
| 9ADA1201H1002 (Without sensor) |
6.6 | 3800 | 3.36 | 119 | 128 | 0.514 | 48 | ||
Expected life: 40000 hours for 9ADA1201P1G001 and 9ADA1201G1002 models (L10 life: 90% survival rate for continuous operation in free air at 60°C, rated voltage)
60000 hours for 9ADA1201H1002 model (L10 life: 90% survival rate for continuous operation in free air at 60°C, rated voltage)
San Ace 120AD 9ADAW type Splash Proof Fan - Dimensions: 120 × 120 × 38 mm, Mass: 420 g
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure | Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9ADAW1201P1H001 (With pulse sensor and PWM control) 9ADAW1201H1002 (Without sensor) |
100 to 240 | 90 to 264 | 6.6 | 3800 | 3.36 | 119 | 128 | 0.514 | 48 |
Expected life: 60000 hours (indoors, L10 life: 90% survival rate for continuous operation, in free air at 60°C, rated voltage)
PDF Catalog
San Ace 120AD 9ADA type ACDC Fan 120 × 120 × 38 mm
San Ace 120AD 9ADAW type Splash Proof ACDC Fan 120 × 120 × 38 mm
Applications
Control panels, food manufacturing equipment, and plant factories
Release Date
August 24, 2022
Safety Precautions
The information stated in this release is current as of August 24, 2022.
San Ace is a registered trademark of SANYO DENKI CO., LTD.
