SANYO DENKI Launches 40 × 40 × 20 mm and 40 × 40 × 28 mm Splash Proof Fans with the Highest Airflow and Static Pressure in the Industry
August 24, 2022
SANYO DENKI has developed and launched the 40 × 40 × 20 mm and 40 × 40 × 28 mm San Ace 40W 9WPA type Splash Proof Fans that achieve the highest airflow and static pressure in the industry.(1) This fan is suitable for cooling base stations, quick EV charging stations, and surveillance cameras.

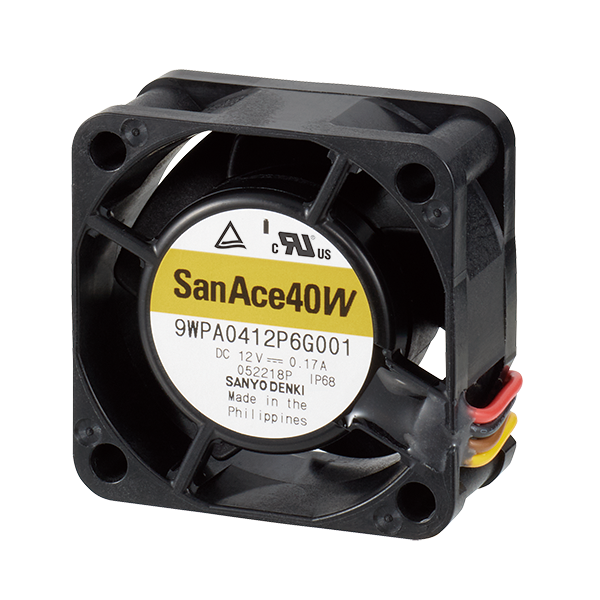

40 × 40 × 20 mm San Ace 40W 9WPA type

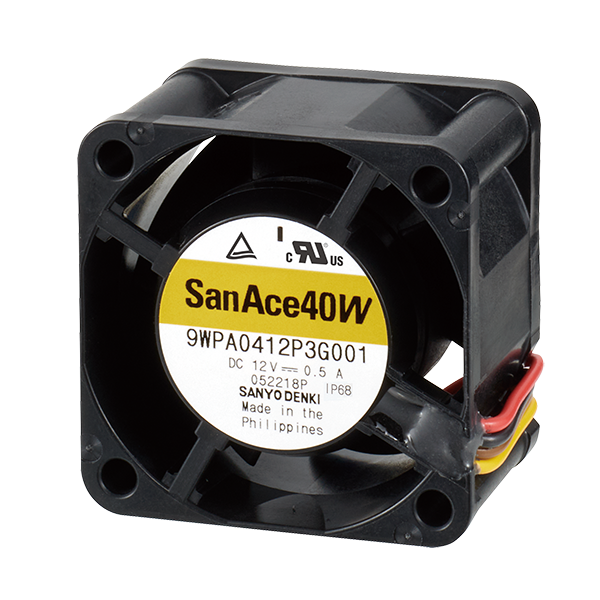

40 × 40 × 28 mm San Ace 40W 9WPA type
Features
1. High Airflow and High Static Pressure
The 40 × 40 × 20 mm Splash Proof Fan delivers a maximum airflow of 13.4 CFM and maximum static pressure of 0.84 InchesH2O,(2) which are about 1.68 times and 3.19 times higher than our current model,(3) respectively.
The 40 × 40 × 28 mm Splash Proof Fan delivers maximum static pressure of 2.22 InchesH2O,(4) which is about 1.38 times higher compared to our another current model.(5)
2. Low Noise and Energy Saving
The PWM control function enables the control of fan speed, contributing to lowering noise and improving energy efficiency of devices.
3. Water and Dust Protection
This fan achieves excellent IP68(6) water and dust protection, maintaining stable operation in harsh environments.
(1) Based on our own research as of June 28, 2022, conducted among equally-sized water-resistant fans on the market.
(2) For models 9WPA0412P6G001 and 9WPA0424P6G001
(3) Current model: 40 × 40 × 20 mm San Ace 40W 9WP type Splash Proof Fan (model no. 9WP0412H6001).
(4) For models 9WPA0412P3G001 and 9WPA0424P3G001
(5) Another current model: 40 × 40 × 28 mm San Ace 40W 9WL type Splash Proof Fan (model no. 9WL0412P3J001).
(6) The degree of protection (IP code) is defined by IEC 60529 (International Electrotechnical Commission) as follows.
IP68:
• Complete protection against dust
• Protection against submersion in water
Specifications
San Ace 40W 9WPA type Splash Proof Fan - Dimensions: 40 × 40 × 20 mm, Mass: 47 g
The models listed below have pulse sensors with PWM control function.
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure | Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9WPA0412P6G001 | 12 | 10.8 to 13.2 | 2.0 | 13700 | 0.38 | 13.4 | 210 | 0.84 | 44 |
| 9WPA0424P6G001 | 24 | 21.6 to 26.4 | |||||||
Expected life: 40000 hours (indoors, L10 life: 90% survival rate for continuous operation, in free air at 60°C, rated voltage)
The models listed below have pulse sensors.
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure | Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9WPA0412H6001 | 12 | 7 to 13.8 | 0.9 | 8800 | 0.24 | 8.5 | 81 | 0.33 | 34 |
| 9WPA0424H6001 | 24 | 14 to 27.6 | |||||||
Expected life: 40000 hours (indoors, L10 life: 90% survival rate for continuous operation, in free air at 60°C, rated voltage)
San Ace 40W 9WPA type Splash Proof Fan - Dimensions: 40 × 40 × 28 mm, Mass: 60 g
The models listed below have pulse sensors with PWM control function.
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure | Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9WPA0412P3G001 | 12 | 10.8 to 13.2 | 6.0 | 22200 | 0.63 | 22.2 | 555 | 2.22 | 53 |
| 9WPA0424P3G001 | 24 | 21.6 to 26.4 | |||||||
Expected life: 40000 hours (indoors, L10 life: 90% survival rate for continuous operation, in free air at 60°C, rated voltage)
The models listed below have pulse sensors.
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure | Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9WPA0412H3001 | 12 | 7 to 13.8 | 4.1 | 18500 | 0.52 | 18.3 | 375 | 1.51 | 48 |
| 9WPA0424H3001 | 24 | 14 to 27.6 | |||||||
Expected life: 40000 hours (indoors, L10 life: 90% survival rate for continuous operation, in free air at 60°C, rated voltage)
PDF Catalog
San Ace 40W 9WPA type 40 × 40 × 20 mm
San Ace 40W 9WPA type 40 × 40 × 28 mm
Applications
Base stations, quick EV charging stations, and surveillance cameras
Release Date
June 28, 2022
Safety Precautions
The information stated in this release is current as of June 28, 2022.
San Ace is a trademark of SANYO DENKI CO., LTD.
