SANYO DENKI Launches 120 × 120 × 38 mm DC Fan with the Lowest Noise in the Industry
January 27, 2023

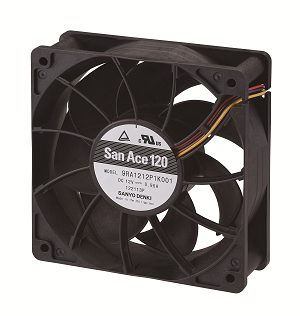

SANYO DENKI has developed and launched the 120 × 120 × 38 mm San Ace 120 9RA type DC Fan that features the lowest noise in the industry.(1)
This fan is ideal for cooling medical equipment, measuring instruments, and other applications that require particularly quiet operation.
Features
1. Low Noise and Energy Saving
Compared to our current model,(2) noise level has been reduced by 3 dB(A) and power consumption has been reduced by 28%.(3)
Moreover, the models with PWM control, which enables the control of fan speed, provide further optimized noise level and efficiency.
2. Extensive Lineup
The product lineup is available in a wide variety in 12/24/48 voltage, cooling performance, noise level, and PWM control. This allows users to choose the most suitable one for their applications.
(1) Based on our own research as of January 27, 2022, conducted among axial DC fans of equivalent size and cooling performance on the market.
(2) Current model: 120 × 120 × 38 mm San Ace 120 9G type DC Fan (model: 9G1212G101).
(3) For models 9RA1212G1001, 9RA1224G1001, and 9RA1248G1001
Specifications
Dimensions: 120 × 120 × 38 mm, Mass: 320 g
The models listed below have pulse sensors with PWM control function.
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure | Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9RA1212P1K001 | 12 | 10.8 to 13.2 | 11.5 | 4700 | 4.5 | 158 | 170 | 0.683 | 50 |
| 9RA1224P1K001 | 24 | 21.6 to 26.4 | 11.5 | 4700 | 4.5 | 158 | 170 | 0.683 | 50 |
| 9RA1248P1K001 | 48 | 43.2 to 52.8 | 12.0 | 4700 | 4.5 | 158 | 170 | 0.683 | 50 |
Expected life: 30000 hours (L10 life: 90% survival rate for continuous operation in free air at 60°C, rated voltage)
The models listed below have pulse sensors.
| Model no. | Rated voltage |
Operating voltage range |
Rated input |
Rated speed |
Max. airflow | Max. static pressure | Sound pressure level |
||
|---|---|---|---|---|---|---|---|---|---|
| [V] | [V] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB(A)] | |
| 9RA1212G1001 | 12 | 7 to 13.8 | 8.4 | 4200 | 4.0 | 141 | 135 | 0.542 | 46 |
| 9RA1212E1001 | 5.6 | 3600 | 3.4 | 120 | 100 | 0.402 | 43 | ||
| 9RA1212H1001 | 3.0 | 3000 | 2.8 | 99 | 70 | 0.281 | 37 | ||
| 9RA1224G1001 | 24 | 14 to 27.6 | 8.4 | 4200 | 4.0 | 141 | 135 | 0.542 | 46 |
| 9RA1224E1001 | 5.8 | 3600 | 3.4 | 120 | 100 | 0.402 | 43 | ||
| 9RA1224H1001 | 3.1 | 3000 | 2.8 | 99 | 70 | 0.281 | 37 | ||
| 9RA1248G1001 | 48 | 40.8 to 55.2 | 8.6 | 4200 | 4.0 | 141 | 135 | 0.542 | 46 |
| 9RA1248E1001 | 5.8 | 3600 | 3.4 | 120 | 100 | 0.402 | 43 | ||
| 9RA1248H1001 | 3.4 | 3000 | 2.8 | 99 | 70 | 0.281 | 37 | ||
Expected life: 40000 hours (L10 life: 90% survival rate for continuous operation in free air at 60°C, rated voltage)
PDF Catalog
Applications
Medical equipment, communication equipment, measuring instruments, and projectors
Release Date
January 27, 2022
Safety Precautions
Safety Precautions [PDF:112KB]
Note: The information stated in this release is current as of January 27, 2022.
San Ace is a trademark of SANYO DENKI CO., LTD.
