SANYO DENKI Launches φ100 × 25 mm IP68 Splash Proof Centrifugal Fan with
the Highest Airflow and Static Pressure in the Industry

August 25, 2021

Thin-profile with High IP Protection contributes Downsize and Higher Reliability to Equipment Design.

IP68 splashproof centrifugal fan SANYO DENKI has developed and launched the San Ace 100W 9W2TM type φ100 × 25 mm Splash Proof Centrifugal Fan that features the highest airflow and static pressure in the industry.(1)
This fan is suitable for cooling digital signage, EV charging stations, and telecommunications equipment.

Features of the 100W 9W2TM-type IP68 Centrifugal Fan

1. Water and Dust Protection

It is IP68-rated(2) for water and dust protection which is an improvement over our current model, and ensures stable fan operation even in harsh environments.(3)

2. High Airflow and High Static Pressure

This fan delivers a maximum airflow of 71.7 CFM and a maximum static pressure of 2.84 inchH2O,(4) both of which are leading in the industry.(1)

3. Low Noise and High Energy Efficiency

The PWM control function enables the control of fan speed, contributing to lowering noise and improving energy efficiency of devices.

(1) Based on our own research as of July 13, 2021, among equally-sized industrial water-resistant centrifugal fans on the market.

(2) The degree of protection (IP code) is defined by IEC 60529 (International Electrotechnical Commission) as follows.
IP68:
・Complete protection against dust
・Protection against submersion in water

(3) Current model: San Ace 100W 9W1TM type φ100 × 25 mm Splash Proof Centrifugal Fan

(4) For models 9W2TM24P4G001 and 9W2TM48P4G001

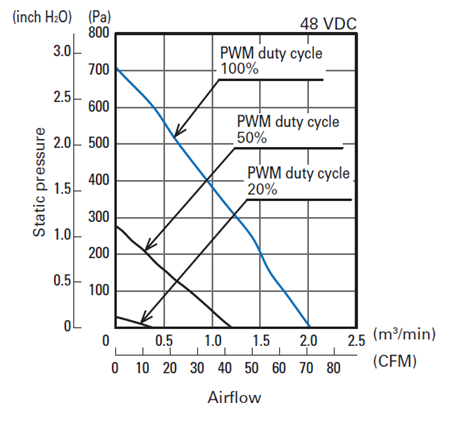

Airflow - Static Pressure Characteristics of G Speed models

100W-Centrifugal-Fan-Airflow-Static-Pressure

Specifications of the 100W 9W2TM-type IP68 Centrifugal Fan

Dimensions: φ100 × 25 mm, Mass: 190 g

Model no. Rated
voltage
Operating
voltage
range
Rated
input
Rated
speed
Max. airflow Max. static
pressure
Sound
pressure
level
[V] [V] [W] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)]
9W2TM24P4G001 24 18 to 27.6 16.8 7400 2.03 71.7 708 2.84 65
9W2TM24P4H001 10.56 6400 1.77 62.5 560 2.25 60
9W2TM48P4G001 48 36 to 60 16.8 7400 2.03 71.7 708 2.84 65
9W2TM48P4H001 10.56 6400 1.77 62.5 560 2.25 60

When equipped with our inlet nozzle (model no.: 109-1080H).
Expected life: 40000 hours (L10 life: 90% survival rate for continuous operation in indoor free air at 60˚C, rated voltage)

PDF Catalog of the 100W 9W2TM-type IP68 Centrifugal Fan
